Technical Specification   Download

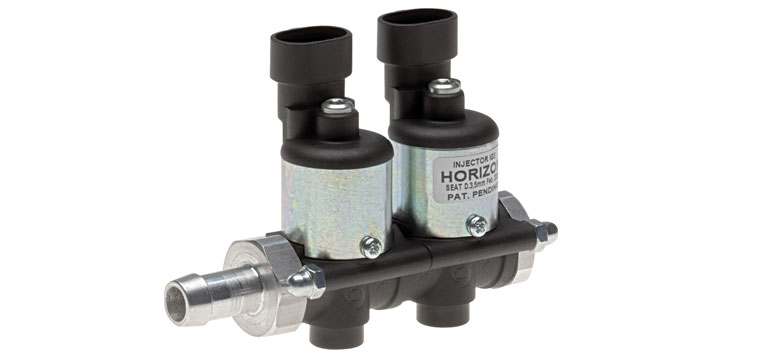

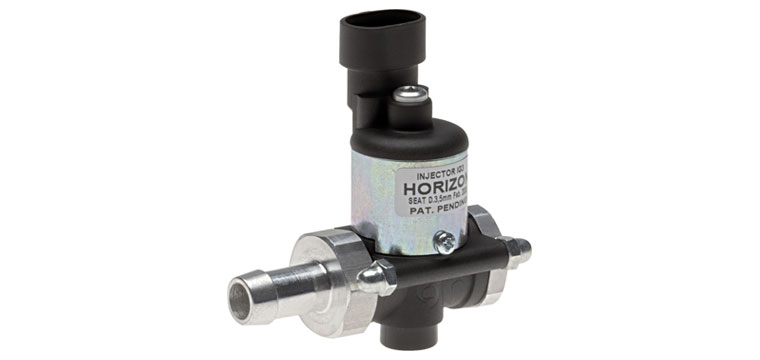

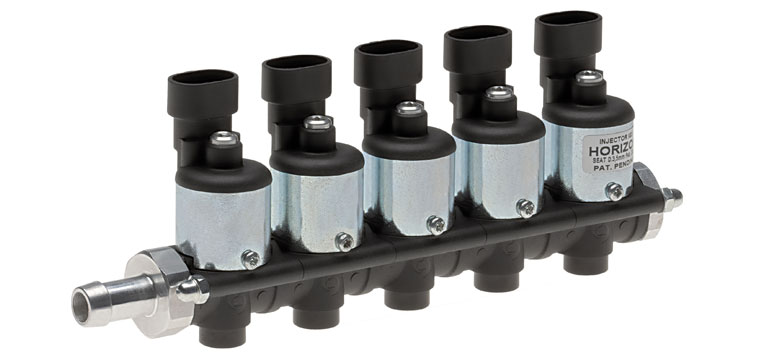

Rail injector for gaseous LPG and Natural Gas. Single version with 0.6 mm stroke. Coils with 2-way built-in watertight connector, compatible with Amp/Delphi. Body made of polymeric material, high mechanical and high heat resistance. Building technology suited for reaching high performance in terms of speed and duration. Not very sensitive to dirt accumulation. High internal flow stability and repetitiveness.


Patented


WORKING PRESSURE from 0,5 to 2,0 bar
MAX PRESSURE 4,5 bar
SUPPLY VOLTAGE 10,8 - 14,4 V
INLET GAS FITTING Rubber hose Ø10mm/Ø12mm/Ø16mm
OUTLET GAS FITTING Calibrated nozzles M8x1
CALIBRATED HOLE RANGE (for nozzles) 1,0 - 3,5 mm (0,25mm step)
T Range -20 / +120°C
Approvals 67R-01/110R-00



1 110R-00 4894
2 67R-01 4893
