Home / Products / Injectors / Ig1 Blackbody Injector

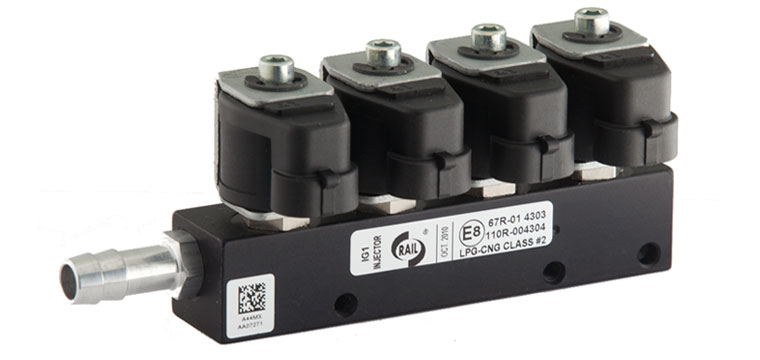

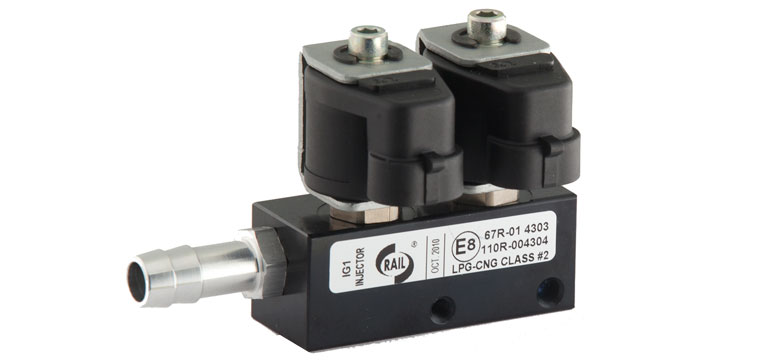

Technical Specification   Download       Rail injector for gaseous LPG and Natural Gas. Single version with 0,6mm stroke. Coils with 2-way built-in watertight connector, compatible with Amp/Delphi. Body made of aluminium. Not very sensitive to dirt accumulation, very moderate price, easy maintenance and easy to clean. Accurate study on the internal flow dynamics.     WORKING PRESSURE from 0,5 to 2,0 bar MAX PRESSURE 3,0 bar SUPPLY VOLTAGE 10,8 - 14,4 V INLET GAS FITTING Rubber hose Ø10mm/Ø12mm/Ø16mm 3/8" / 1/2" OUTLET GAS FITTING Calibrated nozzles M8x1 CALIBRATED HOLE RANGE (for nozzles) 1,0 - 3,5 mm (0,25mm step) T range for LPG -20 / +120°C T range for CNG -40 / +120°C Approvals 67R-01 / 110R-00       1 110R-00 (a.d.) 2 67R-01 (a.d.)     Contact Us     Accessories               Nozzle Connector Connector Connector           M5 Sensor IG1 Connector with temperature sensor Pressure and Temperature Sensor
