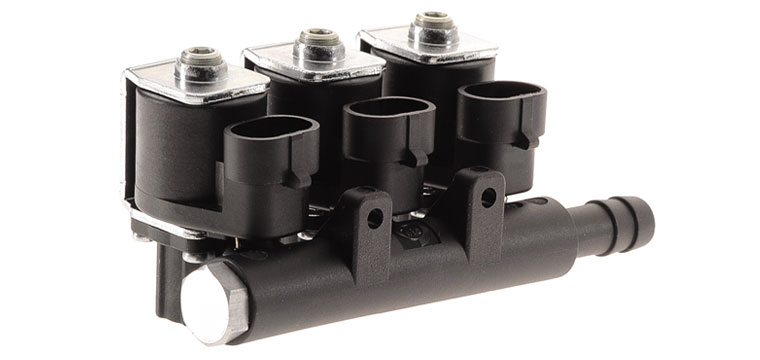

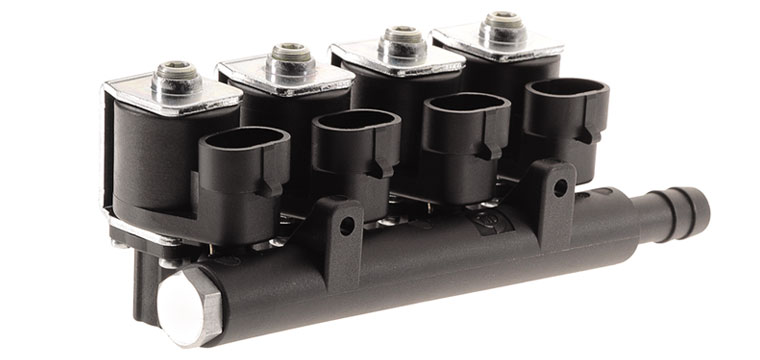

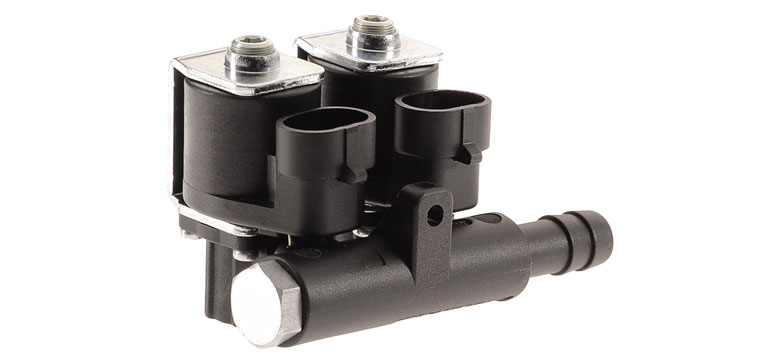

Rail Injector for gaseous LPG and Natural Gas. Single version with 0,6mm stroke. Coils with 2-ways built-in watertight connector, compatible with AMP/Delphi.

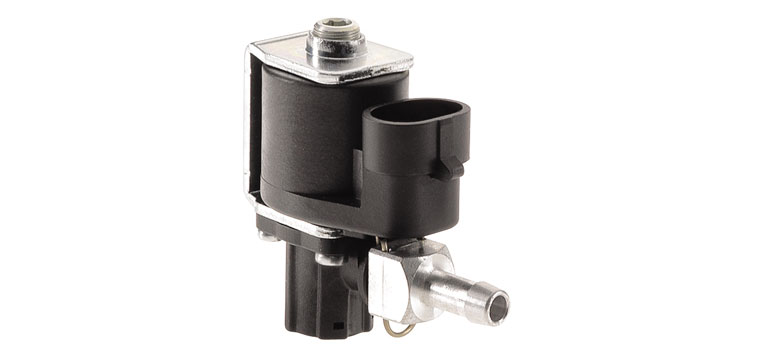

Body made of polymeric material, high mechanical and high heat resistance. Modular Injector in two configurations: single with separate manifold or mountable on rail. Not very sensitive to dirt accumulation.
WORKING PRESSURE
from 0,5 to 2,0 bar
MAX PRESSURE
3,0 bar
SUPPLY VOLTAGE
10,8 - 14,4 V
INLET GAS FITTING
Rubber hose Ø10mm/Ø12mm/Ø14mm/Ø16mm Ø7mm (only for single version)
